DB Introduction

Database Systems

• Database-management system (DBMS) contains information about a particular enterprise.
  • Collection of interrelated data
  • Set of programs to access the data
  • An environment that is both convenient and efficient to use
• Database systems are used to manage collections of data that are
  • Highly valuable
  • Relatively large
  • Accessed by multiple users and applications, often at the same time.

Purpose of Database Systems

• Data redundancy and inconsistency
  • Data is stored in multiple file formats resulting induplication of information in different files.
• Difficulty in accessing data
  • Need to write a new program to carry out each new task.
• Data isolation
  • Multiple files and formats.
• Integrity problems
  • Integrity constraints (e.g., account balance > 0) become “buried” in program code rather than being stated explicitly.
  • Hard to add new constraints or change existing ones.
• Atomicity of updates
  • Failures may leave database in an inconsistent state with partial updates carried out.
• Concurrent access by multiple users
  • Concurrent access needed for performance.
  • Uncontrolled concurrent accesses can lead to inconsistencies.
• Security problems
  • Hard to provide user access to some, but not all, data.

View of Data

• A major purpose of a database system is to provide users with an abstract view of the data.

Data Models

• Data models is a collection of conceptual tools for decribing data, data relationships, data semantics, and consistency constraints.

• Realational Model

  • All the data is stored in various tables.
  • Tables are also known as relations.

• Entity-relationship data model

• Semi-structed data model

• Object-based data model

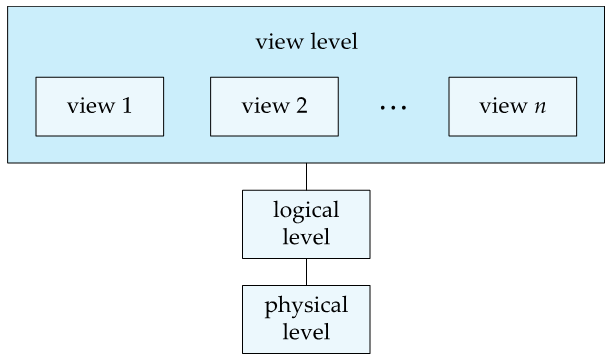

Data Abstraction

• Hide the complexity of data structures to represent data in the database from users through several levels of data abstraction.

• Physical level: describes how a record (e.g., instructor) is stored.

• Logical level: describes data stored in database, and the relationships among the data.

• View level: application programs hide details of data types.

  • Views can also hide information (such as an employee’s salary) for security purposes.

Instances and Schemas

• The collection of information stored in the database at a particular moment is called and instance of the database.
• The overall design of the database is called the database schema.
• Similar to types and variables in programming languages.
  • Logical Schema: The overall logical structure of the database.
  • Example: The database consists of information about a set of customers and accounts in a bank and the relationship between them.
    • Analogous to type information of a variable in a program.
  • Physical schema: The overall physical structure of the database.
  • Instance: The actual content of the database at a particular point in time.
    • Analogous to the value of a variable.
• Physical Data Independence: The ability to modify the physical schema without changing the logical schema Applications depend on the logical schema.
  • In general, the interfaces between the various levels and components should be well defined so that changes in some parts do not seriously influence others.

Database Languages

Data Definition Language (DDL)

• Specification notation for defining the database schema

    create table instructor(
        ID  char(5),
        name varchar(20),
        dept_name   varchar(20),
        salary  numeric(8, 2))

• We specify the storage structure and access methods used by the database system by a set of statements in a special type of DDL called a data storage and definition language.
• The data values stored in the database must satisfy certain consistency constraints.
  • Domain Constraints: A domain of possible values must be associated with every attribute.
  • Referential Integrity
  • Authorization: We may want to differentiate among the users as far as the type of access they are permitted on various data values in the database.
• DDL compiler generates a set of table templates stored in a data dictionary.
• Data dictionary contains metadata.
  • Database schema
  • Integrity constraints
    • Primary key (ID uniquely identifies instructors)
  • Authorization
    • Who can access what

Data Manipulation Language (DML)

• Language for accessing and updating the data organized by the appropriate data model.
  • also known as query language
• There are basically two types of data-manipulation language.
  • Procedural DML: Require a user to specify what data are needed and how to get those data.
  • Declarative DML: Require a user to specify what data are needed without specifying how to get those data.
• Declarative DMLs are usually easier to learn and use than are procedural DMLs.
• Declarative DMLs are also referred to as non-procedural DMLs.
• The portion of a DML that involves information retrieval is called a query language.

SQL Query Language

• SQL query language is nonprocedural. A query takes as input several tables (possibly only one) and always returns a single table.

    select name
    from instructor
    where dept_name = 'Comp. Sci';

• SQL is NOT a Turing machine equivalent language.
• To be able to compute complex functions SQL is usually embedded in some higher-level language.
• Application programs generally access databases through one of
  • Language extensions to allow embedded SQL
  • Application program interface (e.g., ODBC/JDBC) which allow SQL queries to be sent to a database

Database Access from Application Program

• Non-procedural query languages such as SQL are not as powerful as a universal Turing machine.
• SQL does not support actions such as input from users, output to displays, or communication over the network.
• Such computations and actions must be written in a host language, such as C/C++, Java or Python, with embedded SQL queries that access the data in the database.
• Application programs are programs that are used to interact with the database in this fashion.

Database Design

• 간략한 순서
  1. 요건분석
  2. 개념적 설계 (ER model 설계)
     • ER Diagram 도출
  3. Table 스키마
  4. 정규화
  5. refinement
  6. 최종 스키마
• The process of designing the general structure of the database
  • Logical Design: Deciding on the database schema. Database design requires that we find a “good” collection of relation schemas.
    • Business decision: What attributes should we record in the database?
    • Computer Science decision: What relation schemas should we have and how should the attributes be distributed among the various relation schemas?
  • Physical Design Deciding on the physical layout of the database.

Database Engine

• Database system is partitioned into modules that deal with each of the responsibilities of the overall system.
• The functional components of a database system can be divided into
  • The storage manager,
  • The query processor component,
  • The transaction management component.

Storage Manager

• A program module that provides the interface between the low-level data stored in the database and the application programs and queries submitted to the system.
• The storage manager is responsible to the following tasks:
  • Interaction with the OS file manager
  • Efficient storing, retrieving and updating of data
• The storage manager components include:
  • Authorization and integrity manager
  • Transaction manager
  • File manager
  • Buffer manager
• The storage manager implements several data structures as part of the physical system implementation
  • Data files: store the database itself
  • Data dictionary: stores metadata about the structure of the database, in particular the schema of the database.
  • Indices: can provide fast access to data items. A database index provides pointers to those data items that hold a particular value.

Query Processor

• The query processor components include:
  • DDL interpreter: interprets DDL statements and records the definitions in the data dictionary.
  • DML compiler: translates DML statements in a query language into an evaluation plan consisting of low-level instructions that the query evaluation engine understands.
    • The DML compiler performs query optimization; that is, it picks the lowest cost evaluation plan from among the various alternatives.
  • Query evaluation engine: executes low-level instructions generated by the DML compiler.

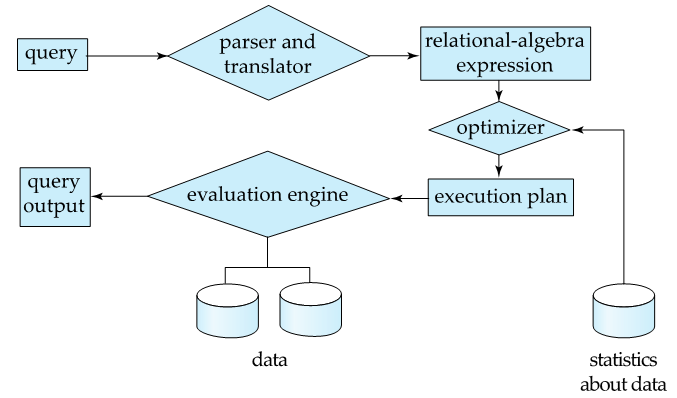

Query Processing

1. Parsing and translation
2. Optimization
3. Evaluation

Transaction Management

• A transaction is a collection of operations that performs a single logical function in a database application.
• Transaction-management component ensures that the database remains in a consistent (correct) state despite system failures (e.g., power failures and operating system crashes) and transaction failures.
• Concurrency-control manager controls the interaction among the concurrent transactions, to ensure the consistency of the database.

Database Architecture

• Centralized databases
  • One to a few cores, shared memory
• Client-server
  • One server machine executes work on behalf of multiple client machines
• Parallel databases
  • Many core shared memory
  • Shared disk
  • Shared nothing
• Distributed databases
  • Geographical distribution
  • Schema/data heterogeneity

Database Applications

• Database applications are usually partitioned into two or three parts
  • Two-tier architecture: The application resides at the client machine, where it invokes database system functionality at the server machine.
  • Three-tier architecture: The client machine acts as a front end and does not contain any direct database calls.
    • The client end communicates with an application server, usually through a forms interface.
    • The application server in turn communicates with a database system to access data.
