Abstract Factory Pattern

Overview

• Purpose
  • Provide an interface that delegates creation calls to one or more concrete classes in order to deliver specific objects.
• Use When
  • The creation of objects should be independent of the system utilizing them.
  • Systems should be capable of using multiple families of objects.
  • Families of objects must be used together.
  • Libraries must be published without exposing implementation details.
  • Concrete classes should be decoupled from clients.

VS Factory Patterns

• Abstract factory pattern is one level of abstraction higher than the factory method pattern.
• Mechanisms
  • Abstract Factory pattern uses composition & delegation.
  • Factory Method pattern uses inheritance.

Example

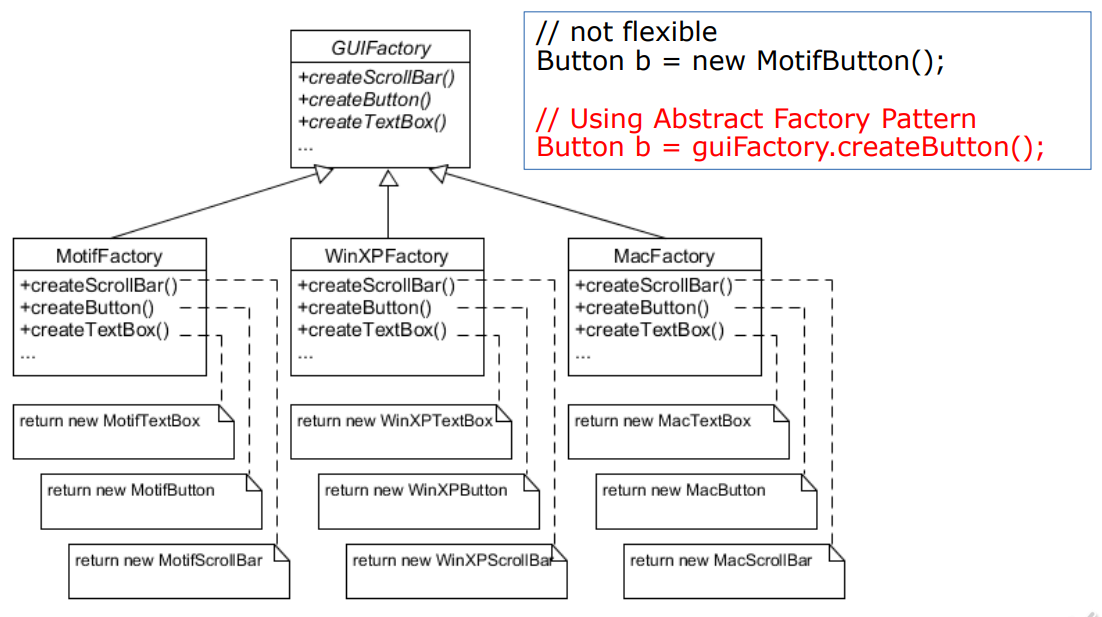

• Building a user interface toolkit that supports multiple look and feel standards.
  • Windows XP, MAC OS X, Motif, X Window
• Have different appearances and behavior for a large set of subclasses.
  • scroll bars, windows, buttons, etc.

Factory Object Set-up and Delegation

public class UIToolKit {
    WidgetFactory wfactory;

    public UIToolKit (WidgetFactory wf) {
        this.wfactory = wf;
    }

    public void PopUpPrinterDialog() {
        DialogWindow d= wfactory.createDialogWindow("Printer Setup");
        d.add ( wfactory.createButton(OK_Button) );
        d.add ( wfactory.createButton(Cancel_Button) );

        d.showWindow();
    }
}

public class DriverForWinXP {
    // setup a specific widget factory
    WidgetFactory wf = new WinXPWidgetFactory();

    // start a client program
    UIToolKit ui = new UIToolKiet(wf);

    // rest of code
}

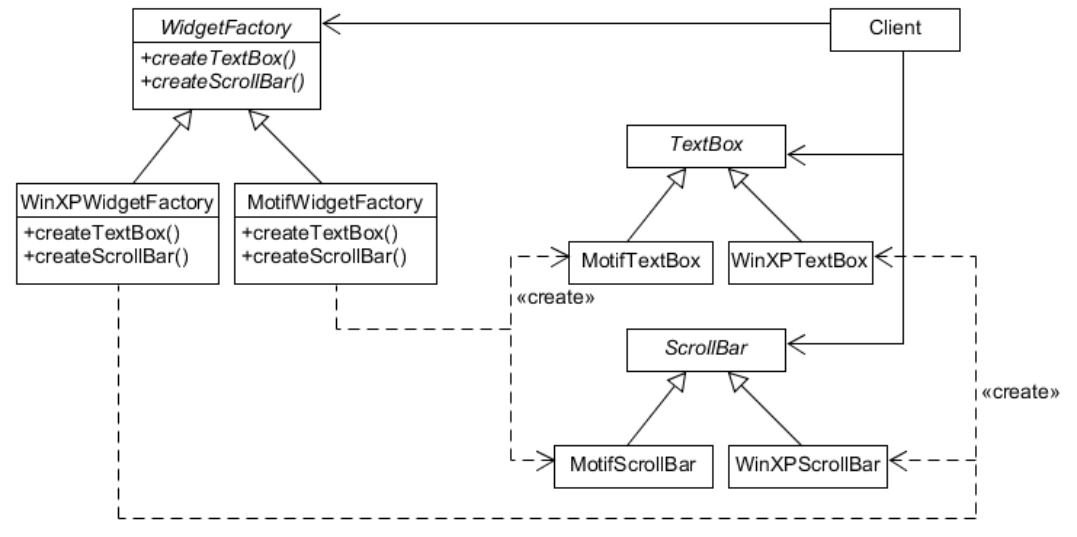

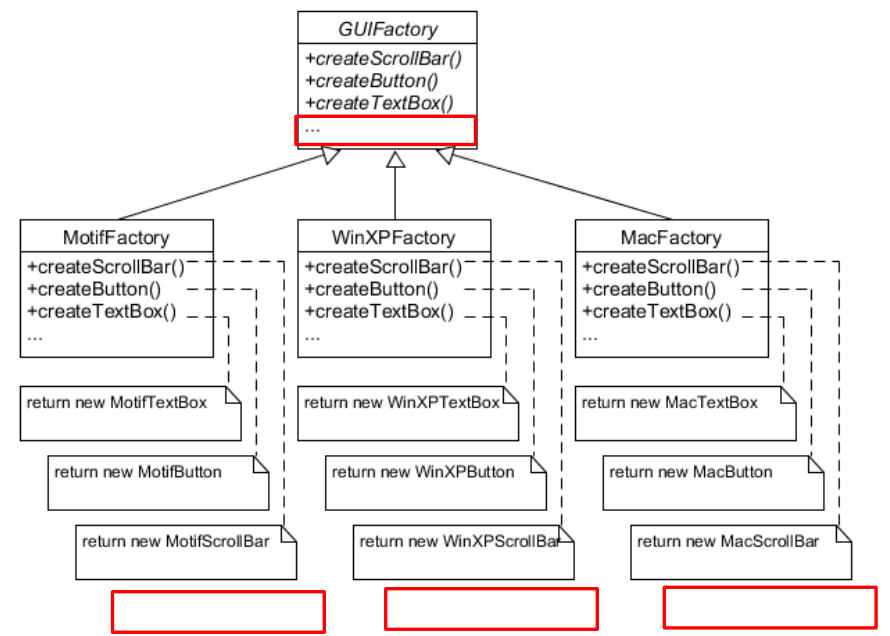

Class Diagram for GUIFactory

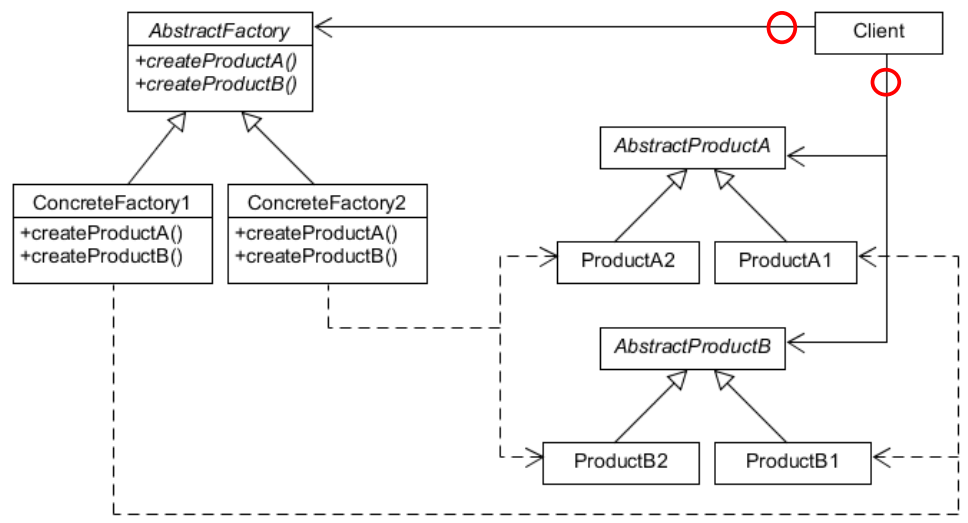

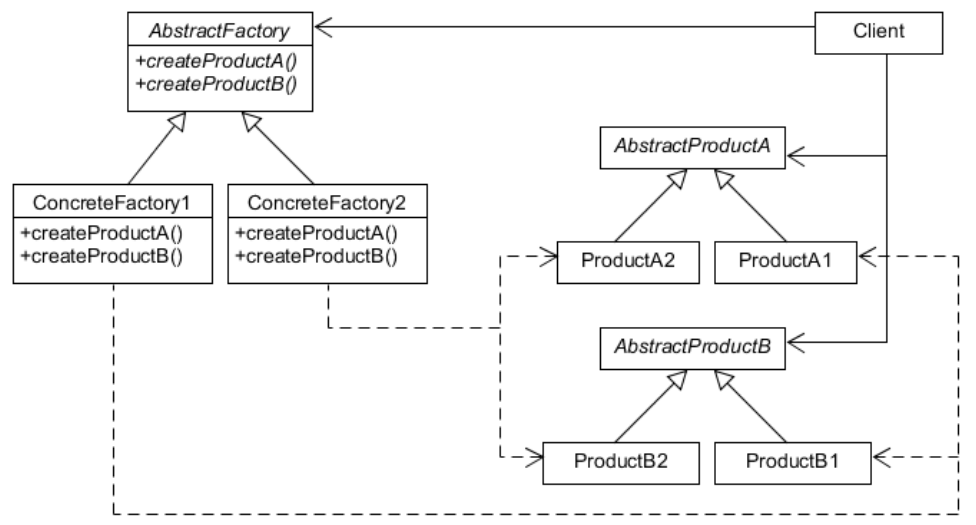

Class Diagram for Abstract Factory Pattern

Participants

• AbstractFactory
  • Declares an interface for operations that create abstract product objects.
• ConcreteFactory
  • Implements the operations to create concrete product objects.
• AbstractProduct
  • Declares an interface for a type of product object.
• ConcreteProduct
  • Defines a product object to be created by the corresponding concrete factory.
  • Implements the AbstractProduct interface.
• Client
  • Uses only interfaces declared by AbstractFactory and AbstractProduct classes.

Other Example

Making Factories for Ingredients (Abstract Factory)

public interface PizzaIngredientFactory {
    public Dough createDough();
    public Sauce createSauce();
    public Cheese createCheese();
    public Veggies[] createVeggies();
    public Pepperoni createPepperoni();
    public Clams createClam();
}

Concrete PizzaIngredientFactory (Factory Object)

public class NYPizzaIngredientFactory implements PizzaIngredientFactory {
    public Dough createDough() {
        return new ThinCrustDough();
    }

    public Sauce createSauce() {
        return new MarinaraSauce();
    }

    public Cheese createCheese() {
        return new ReggianoCheese();
    }

    public Veggies[] createVeggies() {
        Veggies veggies[] = {new Garlic(), new Onion(), new Mushroom(),
        new RedPepper() };
        return veggies;
    }

    public Pepperoni createPepperoni() {
        return new SlicedPepperoni();
    }

    public Clams createClam() {
        return new FreshClams();
    }
}

Pizza product class

public abstract class Pizza {
    String name;
    Dough dough;
    Sauce sauce;
    Veggies veggies[];
    Cheese cheese;

    abstract public void prepare();

    public void bake() {
        System.out.println("Bake for 25 minutes at 350");
    }

    public void cut() {
        System.out.println("Cutting the pizza into diagonal slices");
    }

    public void box() {
        System.out.println("Place pizza in official PizzaStore box");
    }

    public void setName(String name) {
        this.name = name;
    }

    public String getName() {
        return name;
    }

    public String toString() {
        return this.getName();
    }
}

public class NYPizzaStore extends PizzaStore {
    protected Pizza createPizza(String item) {
        Pizza pizza = null;
        PizzaIngredientFactory ingredientFactory = new NYPizzaIngredientFactory();

        if (item.equals("cheese")) {
            pizza = new CheesePizza(ingredientFactory);
            pizza.setName("New York Style Cheese Pizza");
        } else if (item.equals("veggie")) {
            pizza = new VeggiePizza(ingredientFactory);
            pizza.setName("New York Style Veggie Pizza");
        } else if (item.equals("clam")) {
            pizza = new ClamPizza(ingredientFactory);
            pizza.setName("New York Style Clam Pizza");
        } else if (item.equals("pepperoni")) {
            pizza = new PepperoniPizza(ingredientFactory);
            pizza.setName("New York Style Pepperoni Pizza");
        }

        return pizza;
    }
}

public class CheesePizza extends Pizza {
    PizzaIngredientFactory ingredientFactory;

    public CheesePizza(PizzaIngredientFactory ingredientFactory) {
        this.ingredientFactory = ingredientFactory;
    }

    void prepare() {
        System.out.println("Preparing " + name);
        dough = ingredientFactory.createDough();
        sauce = ingredientFactory.createSauce();
        cheese = ingredientFactory.createCheese();
    }
}

What has changed?

1. Instantiating PizzaStore.

   PizzaStore nyPizzaStore = new NYPizzaStore();


2. Order.

   nyPizzaStore.orderPizza(“cheese”);


3. orderPizza() calls createPizza().

   Pizza pizza = createPizza(“cheese”);


4. BEGIN of Changed Flow for Ingredient Factory.
5. createPizza() now needs ingredientFactory.

   Pizza pizza = new CheesePizza(nyIngredientFactory);


6. prepare() creates ingredients using ingredient factory.

   void prepare(){
   dough = ingredientFactory.createDough();
   sauce = ingredientFactory.createSauce();
   cheese = ingredientFactory.createCheese();
   }


7. END of Changed Flow for Ingredient Factory.
8. Now it is ready. orderPizza() calls bake(), cut(), box().

When to Use Abstract Factory Pattern?

• Common to creational patterns
  • A system must be independent of how its products are created, composed, and represented.
  • A class cannot anticipate the class of objects it must create.
• Specific to Abstract Factory pattern
  • A system should use one of a set of families of products.
  • A family of related product objects is designed to be used together, and the constraint needs to be enforced.

Abstract Factory Pattern

• Consequences
  • pros
    • Isolates concrete classes.
      • Factory encapsulates responsibility and process of creating parts.
      • Isolates clients from implementation classes.
    • Exchanging product families easy.
      • Concrete factory appears once where it is instantiated.
    • Promotes consistency among products.
  • cons
    • Supporting new kinds of products is difficult.
      • Fixes set of parts to be created.

Related Patterns

• Abstract Factory
  • classes are often implemented with Factory Methods.
  • but they can also be implemented using Prototype.
• Easy start → Factory Method
  • less complicated, more customizable, subclasses proliferate.
  • Later evolve toward Abstract Factory, Prototype, or Builder when more flexibility is needed.

Summary

• Dependency Inversion Principle (DIP)
  • Depend on abstractions. Do not depend on concrete classes.
• Factory Method
  • Define an interface for creating an object, but let subclasses decide which class to instantiate.
  • Class-scope pattern (uses only inheritance)
• Abstract Factory
  • Provide an interface for creating families of related or dependent objects without specifying their concrete classes
  • Object-scope pattern (uses object composition & delegation).
