Observer Pattern

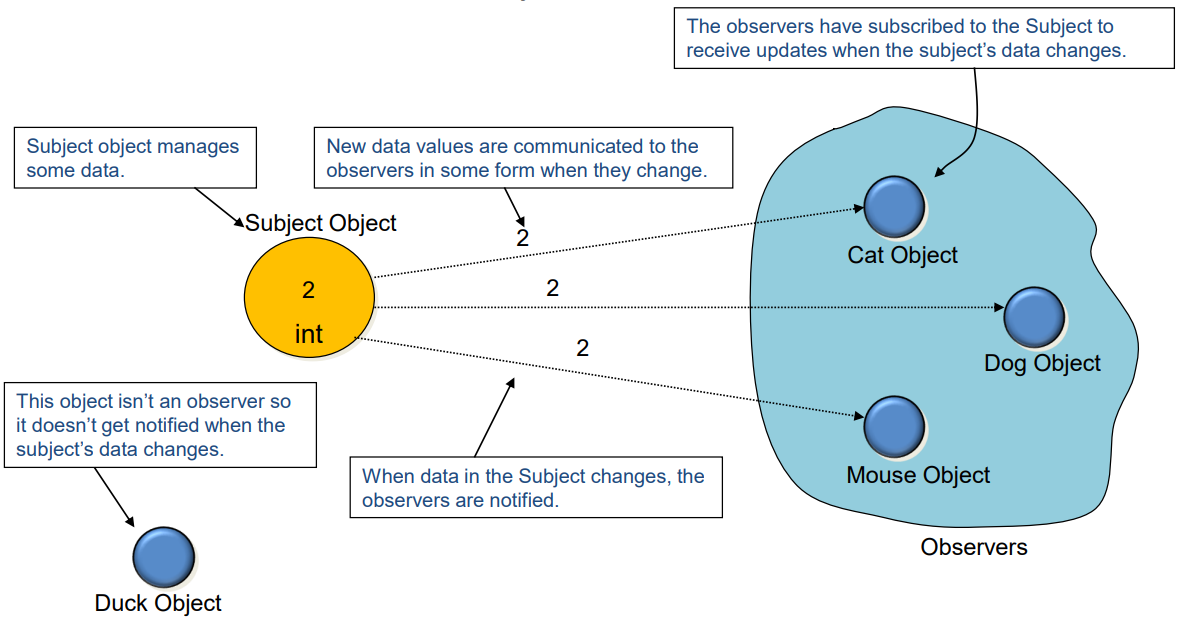

Overview

Also known as

• Publish/Subscribe model

Purpose

• Lets one or more objects be notified of state changes in other objects within the system.

Use When

• Loose coupling is needed for communications.
• State changes in one or more objects should trigger behavior in other objects.
• Broadcasting capabilities are required.
• An understanding exists that objects will be blind to the expense of notification.

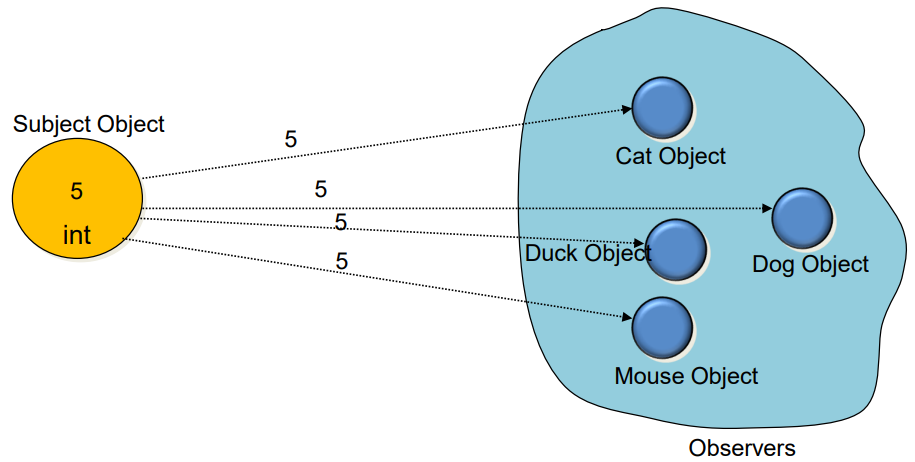

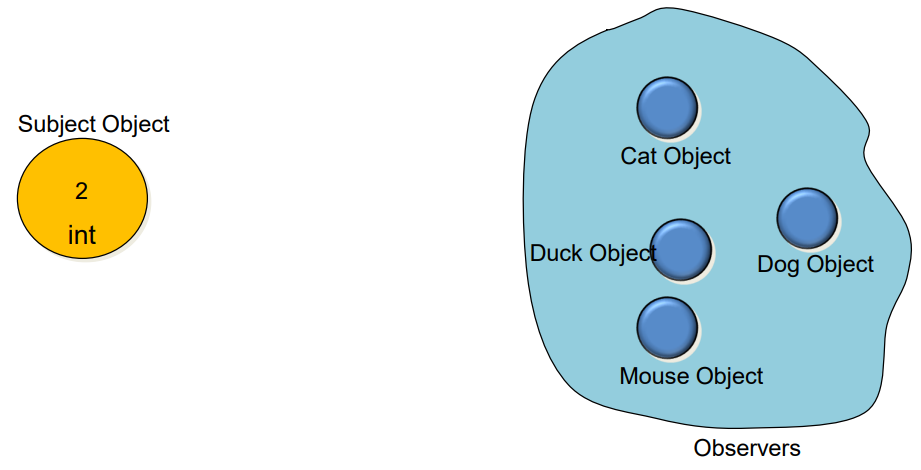

Example

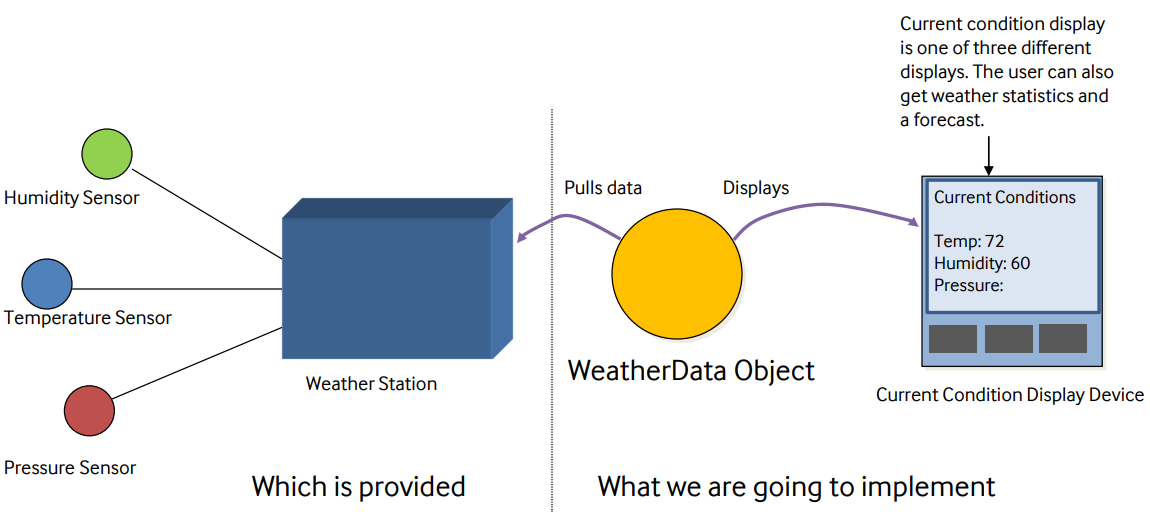

Application Overview

The WeatherData class

• Methods getTemperature(), getHumidity(), getPressure() return the most recent weather measurements for temperature, humidity and pressure respectively.
  • We don’t care how these variables are set.
  • The WeatherData object knows how to get updated information from the Weather Station.
• Method measurementChanged() gets called whenever the measurements have been updated.

What do we know?

• Display elements that use the weather data:
  • Current conditions display
  • Statistics display
  • Forecast display
• They must be updated each time WeatherData has new measurements.
• System must be expandable
  • other developers can create new custom display elements and users can add or remove as many display elements as they want to the application.
  • Currently, we know about only the initial three display types: current conditions, statistics, and forecast.

The First Attempt

public class WeatherData {
    // instance variable delcarations

    public void measurementsChanged() {
        float temp = getTemperature();
        float humidity = getHumidity();
        float pressure = getPressure();

        currentConditionDisplay.update(temp, humidity, pressure);
        statisticDisplay.update(temp, humidity, pressure);
        forecastDisplay.update(temp, humidity, pressure);
    }

    // other weatherData methods here
}

• By coding to concrete implementations we have no way to add or remove other display elements without making changes to the program.

Meet the Obeserver Pattern

• A news paper publisher goes into business and begins publishing newspapers.
• You subscribe to a particular publisher.
  • Every time there’s new edition it gets delivered to you. *As long as you remain a subscriber, you get new newspapers.

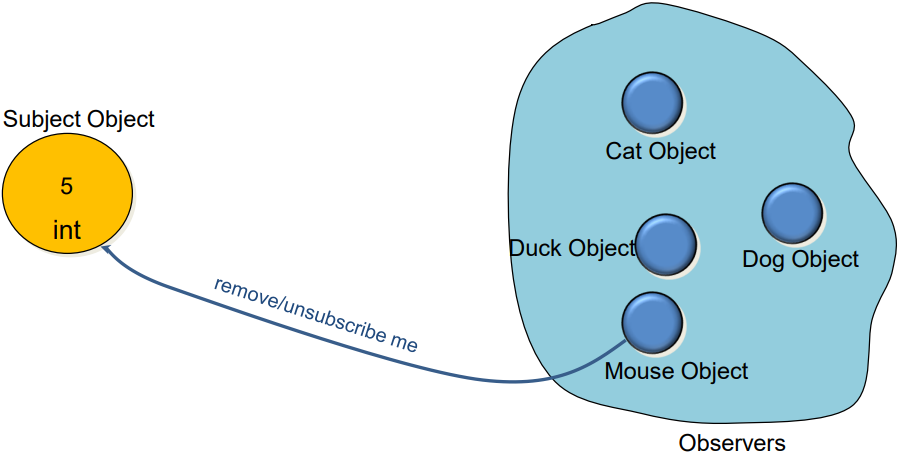

• You unsubscribe when you don’t want papers anymore.
  • They stop delivery.
• While the publisher remains in business, people, hotels, airlines and other business constantly subscribe and unsubscribe to the newspaper.

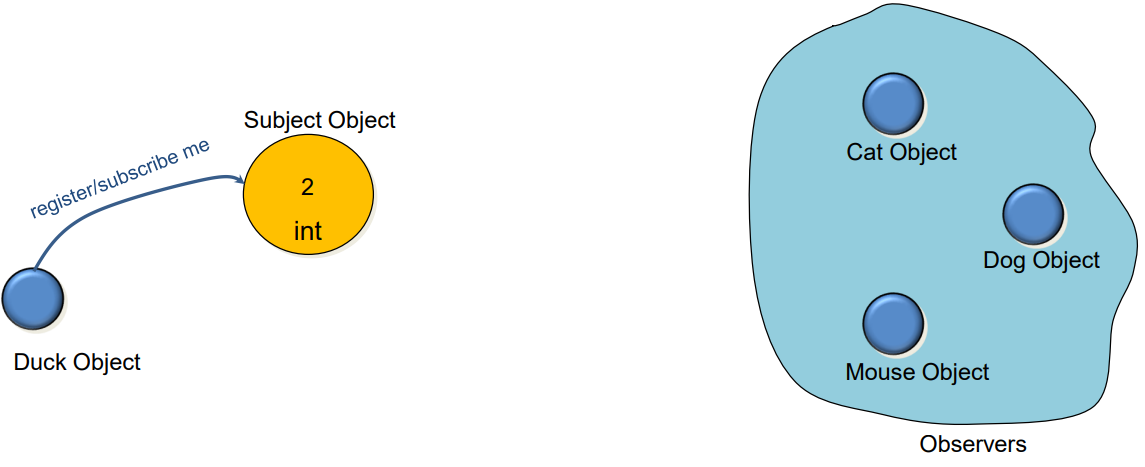

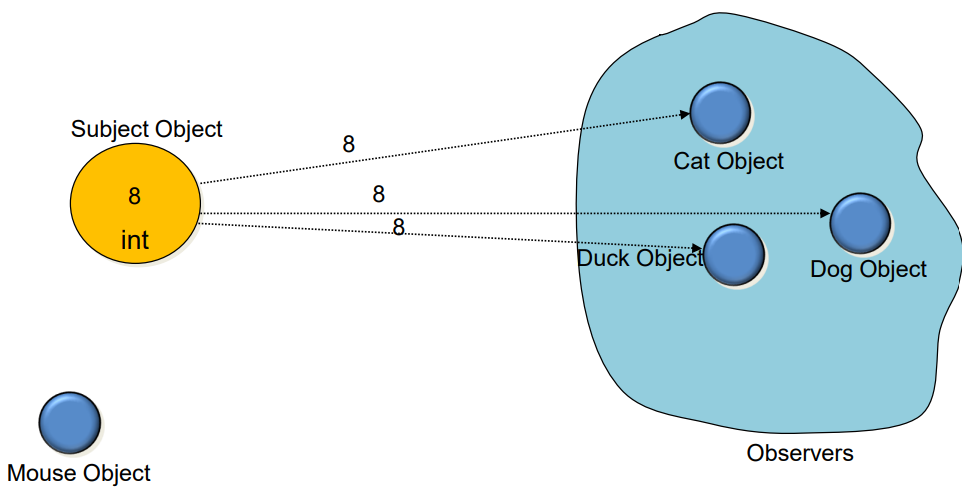

Observer Pattern

• Publisher & Subscriber Model
  • Publisher : Subscriber = Subject : Observer

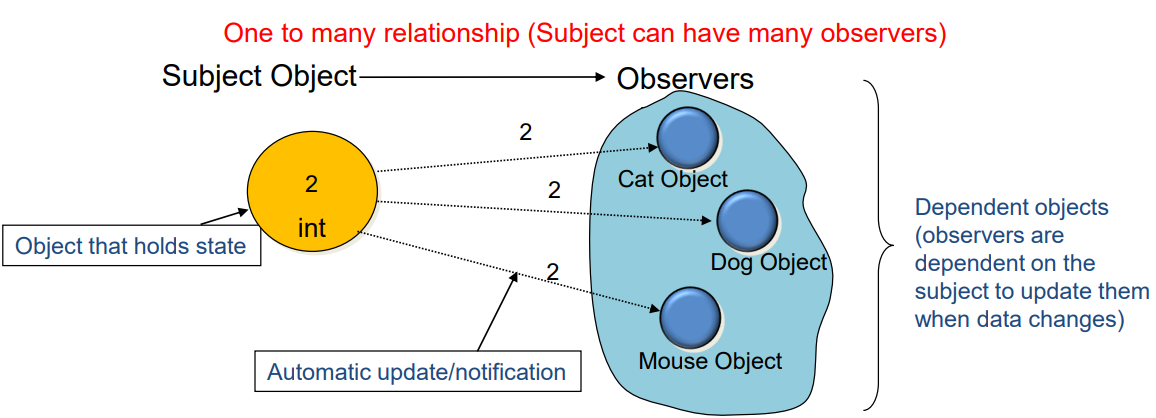

The Observer Pattern Defined

• The Observer Pattern defines a one-to-many dependency between objects so that when one object changes state, all of its dependents are notified and updated automatically.

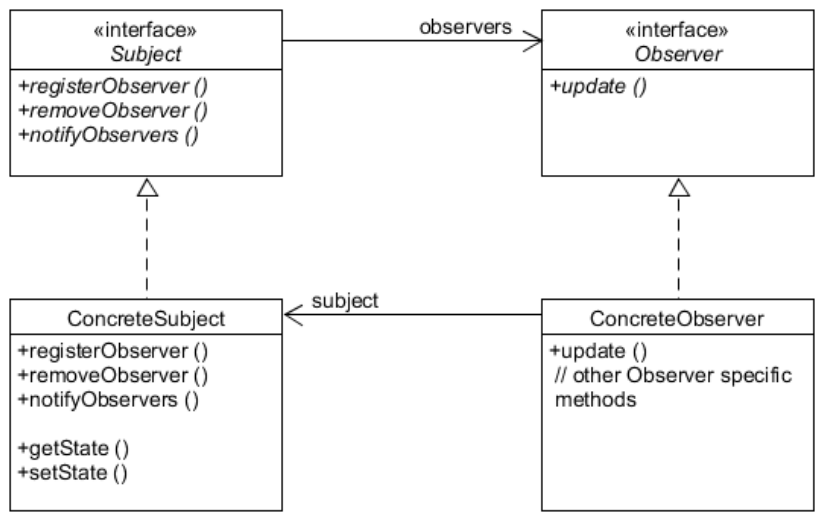

Class Diagram for Observer Pattern

The Power of Loose Coupling

• Principle of loose coupling
  • Strive for loosely coupled designs between object that interact.
• When two objects are loosely coupled, they can interact, but have very little knowledge of each other.
• Observer Pattern provides an object design where subjects and observers are loosely coupled.

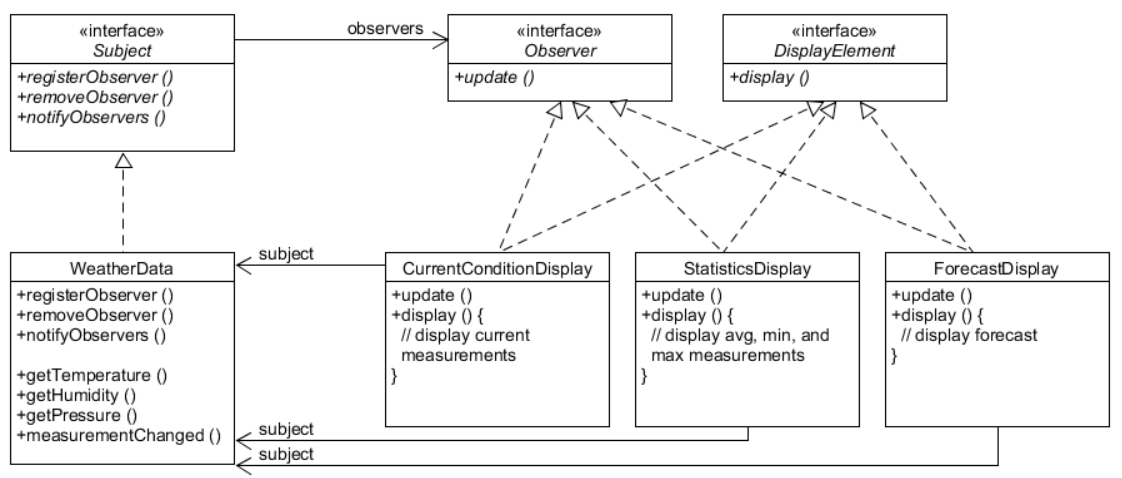

Designing the Weather Station

Preparing Interfaces

public interface Subject {
    public void registerObserver(Observer o);
    public void removeObserver(Obeserver o);
    public void notifyObservers();
}

public interface Observer {
    public void update(float temp, float humidity, float pressure);
}

public interface DisplayElement {
    public void display();
}

Implementing WeatherData

public class WeatherData implements Subject {
    private ArrayList observers;
    private float temperature;
    private float humidity;
    private float pressure;

    public weatherData() {
        this.observers = new ArrayList();
    }

    public void registerObserver(Observer o) {
        observers.add(o);
    }

    public void removeObserver(Observer o) {
        int i = observers.indexof(o);
        if(i >= 0) observers.remove(i);
    }

    public void notifyObservers() {
        for (int i = 0; i < observers.size(); ++i) {
            Observer observer = (Observer) observers.get(i);
            observer.update(temperature, humidity, pressure);
        }
    }

    public void measurementsChanged() {
        notifyObservers();
    }

    public void setMeasurements(float temperature, float humidity, float pressure) {
        this.temperature = temperature;
        this.humidity = humidity;
        this.pressure = pressure;
        measurementsChanged();
    }

    // other WeatherData methods here
}

Implementing CurrentConditioinDisplay

public class CurrentConditionDisplay implements Observer, DisplayElement {
    private float temperature;
    private float humidity;
    private Subject weatherData;

    public CurrentConditionDisplay(Subject weatherData) {
        this.weatherData = weatherData;
        weatherData.registerObserver(this);
    }

    public void update(float temperature, float humidity, float pressure) {
        this.temperature = temperature;
        this.humidity = humidity;
        display();
    }

    public void display() {
        System.out.println("Current condition: " + temperature + "F degrees and" + humidity + "% humidity");
    }
}

Implementing the Weather Station and Output

public class WeatherStation {
    public static void main(String[] args) {
        WeatherData weatherData = new WeatherData();

        CurrentConditionsDisplay currentDisplay = new CurrentConditionsDisplay(weatherData);
        StatisticsDisplay statisticsDisplay = new StatisticsDisplay(weatherData);
        ForecastDisplay forecastDisplay = new ForecastDisplay(weatherData);

        weatherData.setMeasurements(80, 65, 30.4f);
        weatherData.setMeasurements(82, 70, 29.2f);
        weatherData.setMeasurements(78, 90, 29.2f);
    }
}

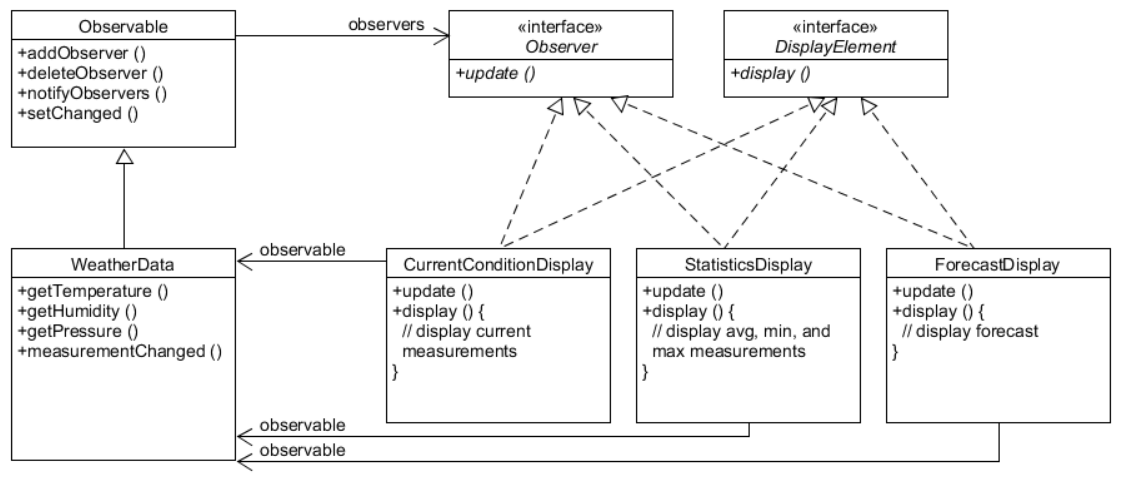

Using Java’s Official Observable Class

How to Use Observable Class

• Observable (Publisher) side
  • To send notifications
    • Call SetChanged()
    • Call either notifyObservers() or notifyObservers(Object arg)
• Observer (Subscriber) side
  • To become an observer
    • Implement java.util.Observer interface
  • To subscribe
    • Call addObserver() on any Observable object
  • To unsubscribe
    • Call deleteObserver()
  • To get updated
    • Implement update(Observable o, Object arg)

Internals of setChanged()

setChanged() {
    changed = true;
}

notifyObservers(Object arg) {
    if (changed) {
        for every observer on the list {
            call update (this, arg);
        }
        changed = false;
    }
}

notifyObservers() {
    notifyObservers(null);
}

Why is the setChanged() necessary?

• setChanged() method is there to give you more flexibility.
  • Optimize the notifications.
  • Example: If the sensor reading is very sensitive, you may not want to update the observers with every minor fluctuation.
    • setChanged() allows you to control the notification points
• Other relevant methods in Observable
  • clearChanged()
  • hasChanged()

Observable side

import java.util.Observable;
import java.util.Observer;

public class WeatherData extends Observable {
    private float temperature;
    private float humidity;
    private float pressure;

    public WeatherData() {}

    public void measurementsChanged() {
        setChanged();
        notifyObservers();
    }

    public void setMeasurements(float temperature, float humidity, float pressure) {
        this.temperature = temperature;
        this.humidity = humidity;
        this.pressure = pressure;
        measurementsChanged();
    }

    public float getTemperature() {
        return temperature;
    }

    public float getHumidity() {
        return humidity;
    }

    public float getPressure() {
        return pressure;
    }
}

Observer side

import java.util.Observable;
import java.util.Observer;

public class CurrentConditionsDisplay implements Observer, DisplayElement {
    Observable observable;
    private float temperature;
    private float humidity;

    public CurrentConditionsDisplay(Observable observable) {
        this.observable = observerble;
        observable.addObserver(this);
    }

    public void update(Observable obs, Object arg) {
        if(obs instanceof WeatherData) {
            WeatherData weatherData = (WeatherData)obs;
            this.temperature = weatherData.getTemperature();
            this.humidity = weatherData.getHumidity();
            display();
        }
    }

    public void display() {
        System.out.println(“Current conditions: ” + temperature + “F degrees and” + humidity + “% humidity”);
    }
}
