CPU Scheduling

Basic Concepts

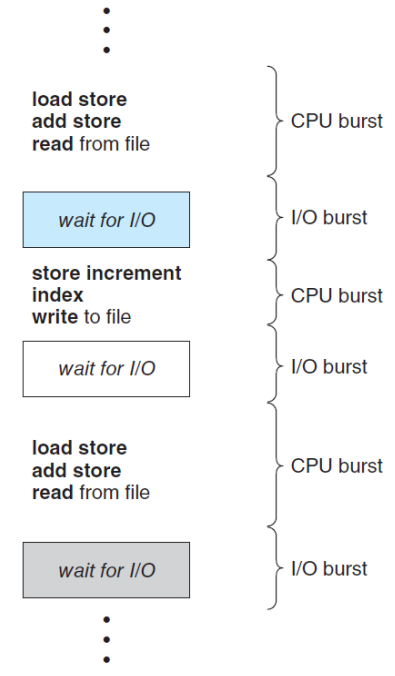

• CPU scheduling is the basis of multiprogrammed operating systems.
• The objective of multiprogramming is to have some processes running at all times to maximize CPU utilization.

• CPU scheduler selects a process from the processes in memory that are ready to execute and allocates the CPU to that process.
• Then, how can we select a next process?
  • Linked List? or Binary Tree?
  • FIFO Queue
  • Priority Queue: How can we determine the priority of a process?

Preemptive vs Non-preemptive

• Non-preemptive scheduling

  • A process keeps the CPU until it releases it, either by terminating or by switching to the waiting state.

• Preemptive scheduling

  • A process can be preempted by the scheduler.

• Decision Making for CPU-scheduling

  1. When a process switches from the running to waiting state.
  2. When a process switches from the running to ready state.
  3. When a process switches from the waiting to ready state.
  4. When a process terminates.

• No. 1 & 4: no choice – non-preemptive.

• No. 2 & 3: choices – preemptive or non-preemptive.

Dispatcher

• The dispatcher is a module that gives control of the CPU’s core to the process selected by the CPU scheduler.

• The functions of dispatcher:

  • Switching context from one process to another -> Context Switching
  • Switching to user mode
  • Jumping to the proper location to resume the user program

• The dispatcher should be as fast as possible since it is invoked during every context switch.

• The dispatcher latency is the time to stop one process and start another running.

Scheduling Criteria

• CPU utilization: To keep the CPU as busy as possible.
• Throughput: The number of processes completed per time unit.
• Turnaround time: How long does it take to execute a processfrom the time of submission to the time of completion.
• Waiting time:
  • The amount of time that a process spends waiting in the ready queue.
  • The sum of periods spend waiting in the ready queue.
• Response time: The time it takes to start responding.

Scheduling Algorithm

• CPU Scheduling Problem: Decide which of the processes in the ready queue is to be allocated the CPU’s core.
• The solutions for the scheduling problem
  • FCFS: First-Come, First-Served
  • SJF: Shortest Job First (SRTF: Shortest Remaining Time First)
  • RR: Round-Robin
  • Priority-based
  • MLQ: Multi-Level Queue
  • MLFQ: Multi-Level Feedback Queue

FCFS Scheduling

• The simplest CPU-scheduling algorithm.

• The process that requests the CPU first is allocated the CPU first.

  • can be easily implemented with a FIFO queue.

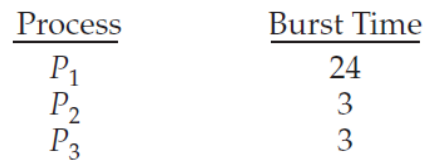

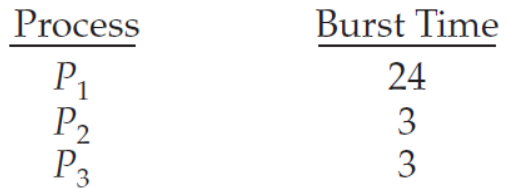

• Consider the following set of processes that arrive at time 0, with the length of the CPU burst given in milliseconds

• If the processes arrive in the order 𝑃1, 𝑃2, 𝑃3:

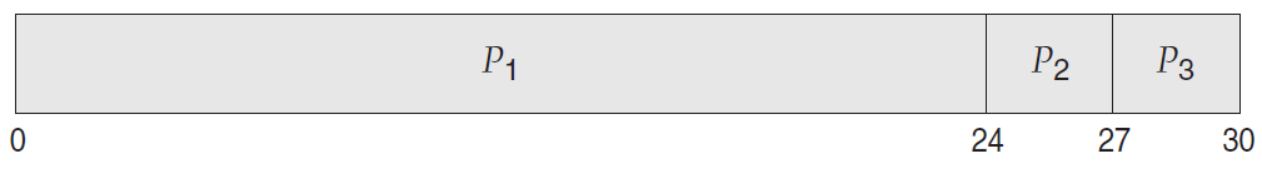

• Calculate the Waiting time of this schedule

  • Waiting Time for 𝑃1 = 0, 𝑃2 = 24, 𝑃3 = 27
  • Total Waiting Time: (0 + 24 + 27) = 51
  • Average Waiting Time: 51/3 = 17

• Let us calculate the Turnaround time:

  • Turnaround Time for 𝑃1 = 24, 𝑃2 = 27, 𝑃3 = 30
  • Total Turnaround Time: (24 + 27 + 30) = 81
  • Average Turnaround Time: 81/3 = 27

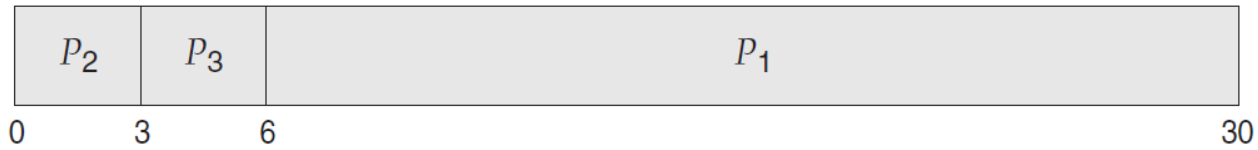

• If the processes arrive in the order 𝑃2, 𝑃3, 𝑃1:

• Calculate the Waiting time of this schedule.

  • Waiting Time for 𝑃1 = 6, 𝑃2 = 0, 𝑃3 = 3
  • Total Waiting Time: (6 + 0 + 3) = 9
  • Average Waiting Time: 9/3 = 3

• Let us calculate the Turnaround time:

  • Turnaround Time for 𝑃1 = 30, 𝑃2 = 3, 𝑃3 = 6
  • Total Turnaround Time: (30 + 3 + 6) = 39
  • Average Turnaround Time: 39/3 = 13

• Note that

  • The average waiting time under the FCFS policy is generally not minimal and may vary substantially if the processes’ CPU-burst times vary greatly.
  • Preemptive or non-preemptive?
    • The FCFS scheduling algorithm is non-preemptive.

• Note also that

  • The performance in a dynamic situation:
    • What if we have one CPU-bound and many I/O-bound processes?
    • CPU-bound가 큰 𝑃1과, 다른 𝑃들이 있을 때
      • 𝑃1이 가장 먼저 도착해버리면 나머지 𝑃들은 대기 시간이 길어짐 -> waiting time이 너무 길어짐(Convoy Effect)
  • Convoy Effect:
    • All the other processes wait for the one big process to get off the CPU.
    • Results in lower CPU and device utilization than might be possible if the shorter processes were allowed to go first.

SJF Scheduling

• Shortest-Job-First: shortest-next-CPU-burst-first scheduling.
• SJF associates with each process: the length of the process’s next CPU burst.
• When the CPU is available, assign it to the process that has the smallest next CPU burst.
• If two or more processes are even, break the tie with the FCFS.

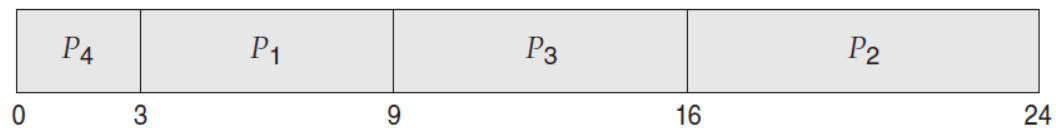

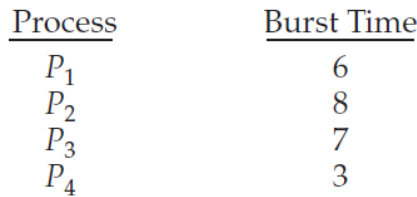

• Calculate the Waiting time:

  • Waiting Time for 𝑃1 = 3, 𝑃2 = 16, 𝑃3 = 9, 𝑃4 = 0
  • Total Waiting Time: (3 + 16 + 9 + 0) = 28
  • Average Waiting Time: 28/4 = 7

• Calculate the Turnaround time:

  • Turnaround Time for 𝑃1 = 9, 𝑃2 = 24, 𝑃3 = 16, 𝑃4 = 3
  • Total Turnaround Time: (9 + 24 + 16 + 3) = 52
  • Average Turnaround Time: 52/4 = 13

• Note that

  • The SJF scheduling algorithm is provably optimal, it gives the minimum average waiting time for a given set of processes.
  • Moving a short process before a long one decreases the waiting time of the short process more than it increases the waiting time of the long process.
  • Consequently, the average waiting time decreases.

• Can you implement the SJF scheduling?

  • There is no way to know the length of the next CPU burst.
  • Try to approximate the SJF scheduling:
    • We may be able to predict the length of the next CPU.
    • Pick a process with the shortest predicted CPU burst.

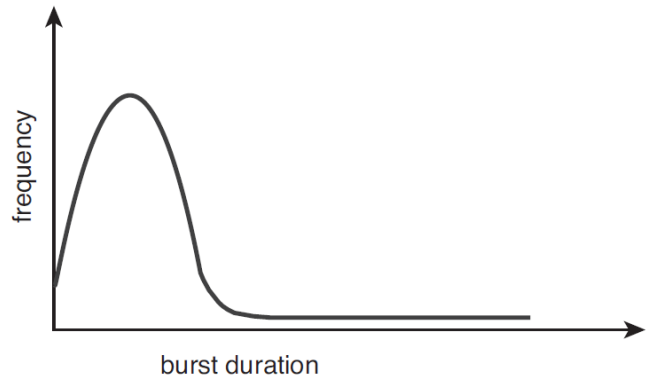

• How to predict the next CPU burst?

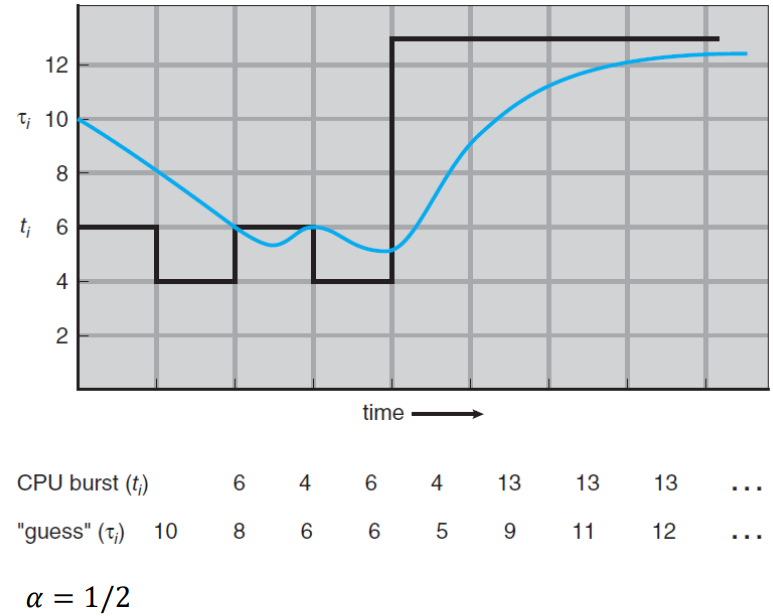

  • Exponential average of the measured lengths of previous CPU burst.
  • $\tau_{n + 1} = \alpha\tau_n + (1 - \alpha)\tau_n$, where
    • $\tau_n$ is the length of 𝑛th CPU burst,
    • $\tau_{n+1}$ is our predicted value for the next CPU burst,
    • for $ 0 <= \alpha <= 1$

• Note also that
  • The SJF algorithm can be either preemptive or non-preemptive.
  • The choice arises: When a new process arrives at the ready queue while a previous process is still executing.
  • What if a newly arrived process is shorter than what is left of the currently executing process?
    • 이론적으로는 preemptive하게 하는 것이 유리하지만, 남은 CPU burst time을 구하는 것은 쉽지 않음

SRTF Scheduling

• Shortest-Remaining-Time-First: Preemptive SJF scheduling
• SRTF will preempt the currently running process, whereas a non-preemptive SJF will allow it to finish its CPU burst.

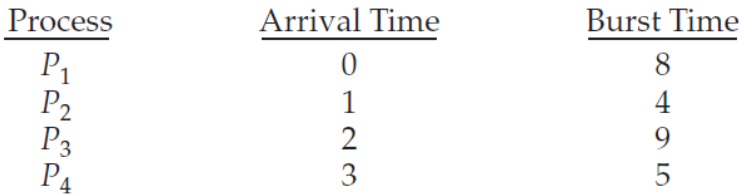

• In SRTF:
  • Waiting time

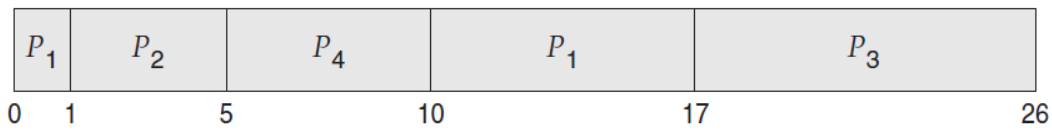

    • Total Waiting Time: [ 10 − 1 + 1 − 1 + 17 − 2 + 5 − 3 ] = 26
    • Average Waiting Time: 26/4 = 6.5
  • Turnaround Time
    • Total Turnaround Time: [17 - 0 + 5 - 1 + 26 - 2 + 10 - 3] = 52
    • Average Turnaround Time: 52/4 = 13
• In SJF:
  • Waiting time
    • Total Waiting Time: [0 + 8 - 1 + 12 - 2 + 21 - 3] = 35
    • Average Waiting Time: 35/4 = 8.75
  • Turnaround Time
    • Total Turnaround Time: [8 - 0 + 12 - 1 + 21 - 2 + 26 - 3] = 61
    • Average Turnaround Time: 61/4 = 15.25

RR Scheduling

• Round-Robin: preemptive FCFS with a time quantum.

• A time quantum (or time slice) is a small unit of time.

  • generally from 10 to 100 milliseconds in length.

• The ready queue is treated as a circular queue.

• The scheduler goes around the ready queue, allocating the CPU to each process for a time interval of up to 1 time quantum.

• One of two things will happen:

  • The process may have a CPU burst of less than one time quantum.
    • The process itself will release the CPU voluntarily
    • The scheduler will proceed to the next process in the ready queue.
  • If the CPU burst is longer than one time quantum, the timer will go off and will cause an interrupt to the OS.
    • A context switch will be executed, the process will be put at the tail of the ready queue.

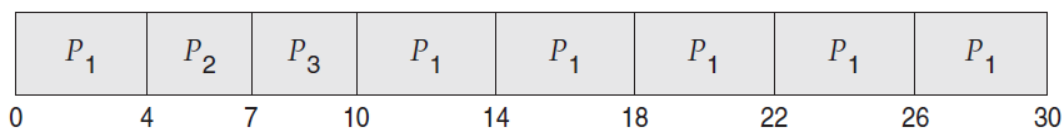

• The Waiting time:

  • Waiting Time for 𝑃1 = 10 − 4 = 6, 𝑃2 = 4, 𝑃3 = 7
  • Total Waiting Time: (6 + 4 + 7) = 17
  • Average Waiting Time: 17/3 = 5.66

• Note that

  • The average waiting time under the RR policy is often long.
  • The RR scheduling algorithm is preemptive.
    • If a process’s CPU burst exceeds one time quantum, that process is preempted and is put back in the ready queue.

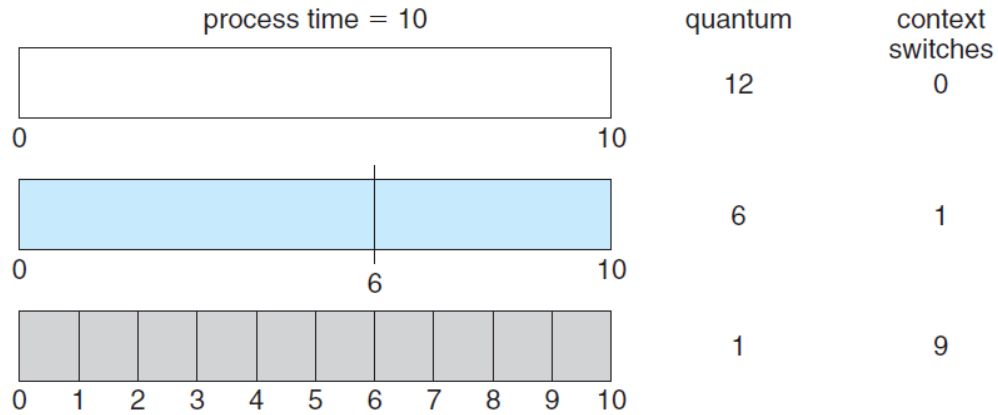

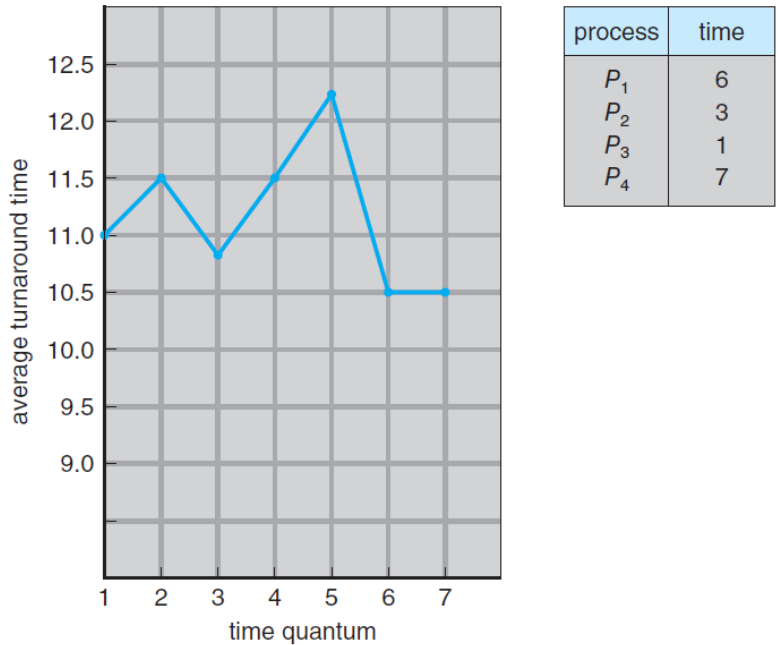

• The performance of the RR scheduling algorithm depends heavily on the size of the time quantum.

Priority base Scheduling

• A priority is associated with each process, and the CPU is allocated to the process with the highest priority.
  • Processes with equal priority are scheduled in FCFS order.
• Note that the SJF is a special case of the priority-based scheduling.
  • In this case, the priority is the inverse of the next CPU burst.
• We assume that low numbers represent high priority.

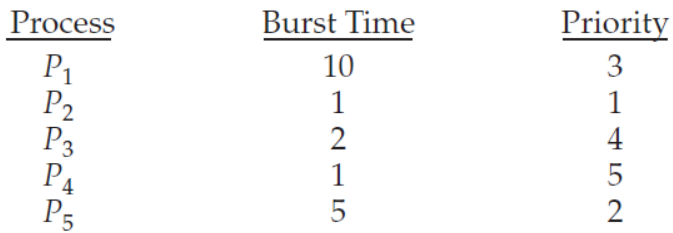

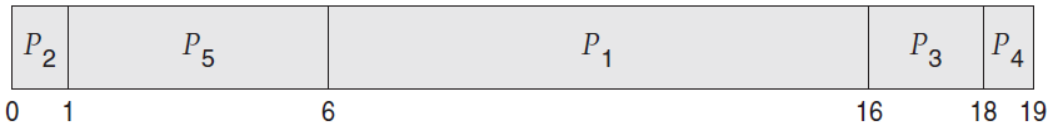

• The average waiting time: 8.2

• The average turnaround time: 12

• Priority scheduling can be either preemptive or non-preemptive.

• The problem of starvation (indefinite blocking)

  • A blocked process: ready to run, but waiting for the CPU.
  • Some low-priority processes may wait indefinitely.

• A solution to the starvation problem is aging gradually increase the priority of processes that wait in the system for a long time.

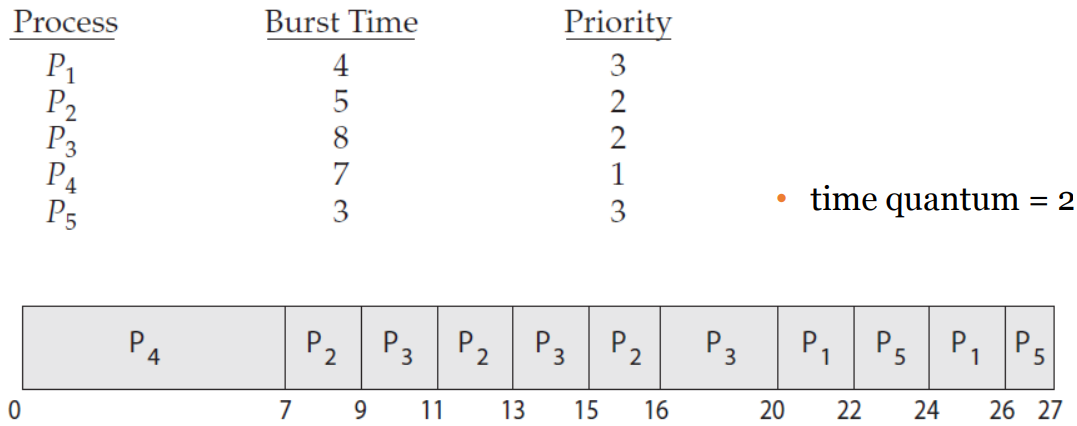

• Combine RR and Priority scheduling: execute the highest-priority process and runs processes with the same priority using round-robin scheduling.

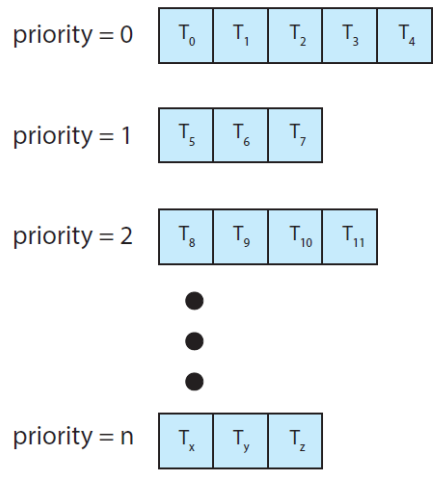

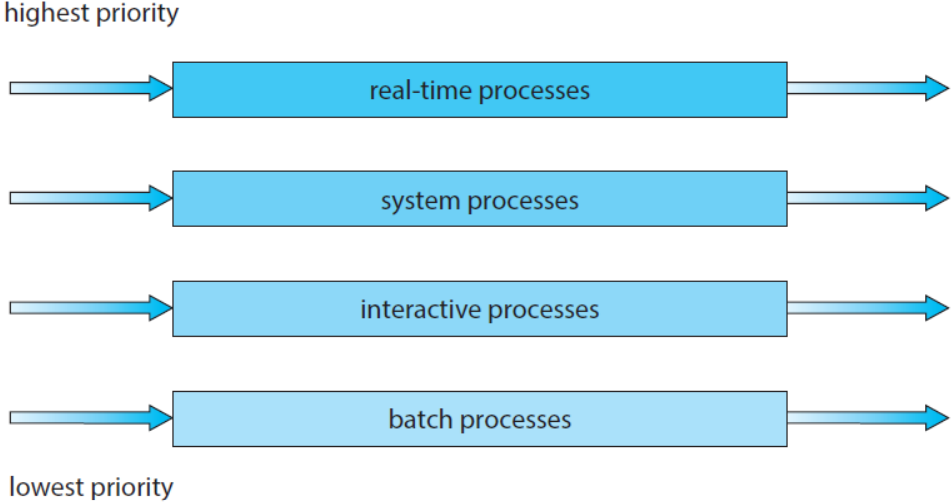

Multi-Level Queue(MLQ) Scheduling

Multi-Level Feedback Queue(MLFQ) Scheduling

• MLQ같은 경우, 우선순위가 낮은 process에서 starvation이 발생할 수 있음
• 이를 방지하기 위해, Aging 기법으로 우선순위를 바꿔주는 등 다양한 방법을 도입

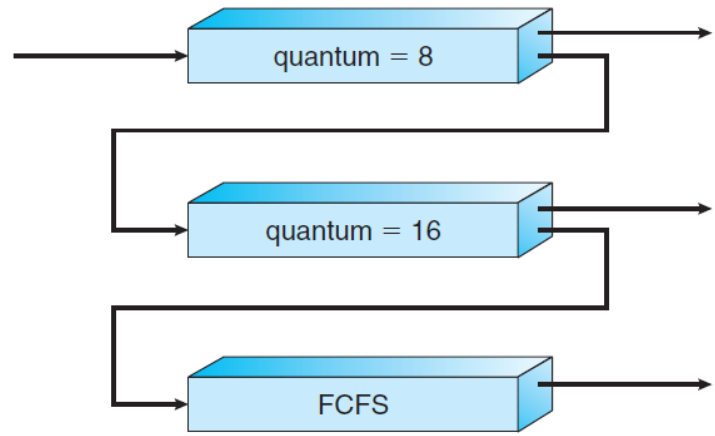

• 처음 process가 실행될 때는 quantum이 8만큼 실행
• 이때 작업이 다 끝나지 않은 상태에서 interrupt가 되면 quantum = 16인 큐로 이동하여 대기
• 이후 quantum이 16만큼 실행
• 이런 과정을 여러 큐를 두고 반복하며 점점 CPU 할당 시간을 늘려주며 실행

Thread Scheduling

• On most modern operating systems
  • It is kernel threads – not processes – that are being scheduled, and user threads are managed by a thread library.
  • So, the kernel is unaware of them, ultimately mapped to associated kernel threads.

Real-Time CPU Scheduling

• Soft Realtime vs Hard Realtime
• Soft real-time systems provide no guarantee
  • As to when a critical real-time process will be scheduled.
  • Guarantee only that a critical process is preferred to noncritical one.
• Hard real-time systems have stricter requirements.
  • A task must be services by its deadline.
