Synchronization Examples

Classic Problems of Synchronization

• Examples of a large class of Concurrency-Control Problems
  • The Bounded-Buffer Problem
    • The Producer-Consumer Problem
  • The Readers-Writers Problem
  • The Dining-Philosophers Problem

The Bounded-Buffer Problem

• Recall the Producer-Consumer Problem with a pool consisting of n buffers, each capable of holding one item.

  • The producer produces full buffers for the consumer
  • The consumer produces empty buffers for the producer.

• Shared Data Structures:

  • A binary semaphore mutex provides mutual exclusion for accesses to the buffer pool and is initialized to the value 1.
  • Two counting semaphores empty and full are used to count the number of empty and full buffers.
    • empty is initialized to the value 𝑛, full is to the value 0.

int n;
semaphore mutex = 1;
semaphore empty = n;
semaphore full = 0;

/*
* The structure of the producer process
*/
while (true) {
    ...
    /* produce an item in next_produced */
    ...
    wait(empty);
    wait(mutex);
    ...
    /* add next_produced to the buffer */
    ...
    signal(mutex);
    signal(full);
}

/*
* The structure of the consumer process
*/
while (true) {
    wait(full);
    wait(mutex);
    ...
    /* remove an item from buffer to next_consumed */
    ...
    signal(mutex);
    signal(empty);
    ...
    /* consume the item in next_consumed */
    ...
}

The Readers-Writers Problem

• What if the processes running concurrently are either the readers or the writers to the shared data?

  • e.g., a database shared among several concurrent processes.

• The readers may want only to read the database, whereas the writers to update (that is, read and write) the database.

• Note that, obviously, no adverse effects will result, if two or more readers access the shared data simultaneously.

• However, chaos may ensue, if a writer and some other process (either a reader or a writer) access the database simultaneously.

• Some Variations of the Readers-Writers Problem:

  • Priorities are involved with all the variations.
  • The first readers-writers problem:
    • No reader should wait for other readers to finish simply because a writer is waiting.
  • The second readers-writers problem:
    • If a writer is waiting to access the object, no new readers may start reading.
  • Note that starvation may occur in these two cases.

• Solution to the first readers-writers problem

  • The reader processes share the following data structures
  • rw_mutex is common to both readers and writers.
  • mutex is used to ensure mutual exclusion when the variable read_count is updated.
  • read_count keeps track of how many processes are currently reading the object.

semaphore rw_mutex = 1;
semaphore mutex = 1;
int read_count = 0;

/*
* The structure of a writer process
*/

while (true) {
    wait(rw_mutex);
    ...
    /* writing is performed */
    ...
    signal(rw_mutex);
}

/*
* The structure of a reader process
*/

while (true) {
    wait(mutex);
    read_count++;
    if (read_count == 1)
        wait(rw_mutex);
    signal(mutex);
    ...
    /* reading is performed */
    ...
    wait(mutex);
    read_count--;
    if (read_count == 0)
        signal(rw_mutex);
    signal(mutex);
}

• Solution to the Readers-Writers Problem:
  • Note that, if a writer is in the critical section, and 𝑛 readers are waiting, then one reader is queued on rw_mutex, and 𝑛 − 1 readers are queued on mutex.
  • Also observe that, when a writer executes signal(rw_mutex), we may resume the execution of either the waiting readers or a single waiting writer.
    • The selection is made by the scheduler.

The Reader-Writer Locks

• The readers-writers problem and its solutions have been generalized to provide reader-writer locks.
• Acquiring a reader-writer lock requires specifying the mode of the lock: either read or write.
• Note that multiple processes may acquire a reader-writer lock in read mode, but only one process may acquire the lock for writing, as exclusive access is required for writers.

Solution to the Bounded-Buffer Problem

/*
* PThread solution to the Bounded-Buffer Problem
*/
#include <stdio.h>
#include <stdlib.h>
#include <unistd.h>
#include <pthread.h>
#include <semaphore.h>

#define true 1
#define BUFFER_SIZE 5

int buffer[BUFFER_SIZE];

pthread_mutex_t mutex;
sem_t empty, full;

int in = 0, out = 0;

void insert_item(int item) {
    sem_wait(&empty);
    pthread_mutex_lock(&mutex);

    buffer[in] = item;
    in = (in + 1) % BUFFER_SIZE;
    printf("Producer: inserted $%d\n", item);

    pthread_mutex_unlock(&mutex);
    sem_post(&full);
}

void remove_item(int *item) {
    sem_wait(&full);
    pthread_mutex_lock(&mutex);

    *item = buffer[out];
    out = (out + 1) % BUFFER_SIZE;
    printf("Consumer: removed $%d\n", *item);

    pthread_mutex_unlock(&mutex);
    sem_post(&empty);
}

void *producer(void *param) {
    int item;
        while (true) {
            usleep((1 + rand() % 5) * 100000);
            item = 1000 + rand() % 1000;
            insert_item(item); // critical section
    }
}

void *consumer(void *param) {
    int item;
    while (true) {
        usleep((1 + rand() % 5) * 100000);
        remove_item(&item); // critical section
    }
}

int main(int argc, char *argv[]) {
    int i, numOfProducers = 1, numOfConsumers = 1;
    pthread_t tid;

    pthread_mutex_init(&mutex, NULL);
    sem_init(&empty, 0, BUFFER_SIZE);
    sem_init(&full, 0, 0);
    srand(time(0));
    // Create the producers
    for (i = 0; i < numOfProducers; i++)
        pthread_create(&tid, NULL, producer, NULL);
    // Create the consumers
    for (i = 0; i < numOfConsumers; i++)
        pthread_create(&tid, NULL, consumer, NULL);

    sleep(10);
    return 0;
}

/*
* Java solution to the Bounded-Buffer Problem
*/

public class BoundedBuffer {
    public static void main(String[] args) {
        CashBox cashBox = new CashBox(1);
        Thread[] producers = new Thread[1];
        Thread[] consumers = new Thread[1];
        // Create threads of producers
        for (int i = 0; i < producers.length; i++) {
            producers[i] = new Thread(new ProdRunner(cashBox));
            producers[i].start();
        }
        // Create threads of consumers
        for (int i = 0; i < consumers.length; i++) {
            consumers[i] = new Thread(new ConsRunner(cashBox));
            consumers[i].start();
        }
    }
}

class ProdRunner implements Runnable {
    CashBox cashBox;
    public ProdRunner(CashBox cashBox) {
        this.cashBox = cashBox;
    }
    @Override
    public void run() {
        try {
            while (true) {
                Thread.sleep((long)(Math.random()*500));
                int money = ((int)(1 + Math.random()*9))*10000;
                cashBox.give(money);
            }
        } catch (InterruptedException e) {}
    }
}

class ConsRunner implements Runnable {
    CashBox cashBox;
    public ConsRunner(CashBox cashBox) {
        this.cashBox = cashBox;
    }
    @Override
    public void run() {
        try {
            while (true) {
                Thread.sleep((long)(Math.random()*500));
                int money = cashBox.take();
            }
        } catch (InterruptedException e) {}
    }
}

class CashBox {
    private int[] buffer;

    private int count, in, out;

    public CashBox(int bufferSize) {
        buffer = new int[bufferSize];
        count = in = out = 0;
    }

    synchronized public void give(int money) {
        while (count == buffer.length) {
            try {
                wait();
            }
            catch (InterruptedException e) {}
        }

        buffer[in] = money;
        in = (in + 1) % buffer.length;
        count++;
        System.out.printf("Cash increased: %d\n", money);

        notify();
    }

    synchronized public int take() throws InterruptedException {
        while (count == 0) {
            try {
                wait();
            }
            catch (InterruptedException e) {}
        }

        int money = buffer[out];
        out = (out + 1) % buffer.length;
        count--;
        System.out.printf("Cash decreased: %d\n", money);

        notify();
        return money;
    }
}

/*
* Java solution to the first Readers-Writers Problem
*/

class SharedDB {
    private int readerCount = 0;
    private boolean isWriting = false;

    public void read() {
    // read from the database here.
    }

    public void write() {
    // write into the database here.
    }

    synchronized public void acquireReadLock() {
        while (isWriting == true) {
            try {
                wait();
            } catch (InterruptedException e) {}
        }
        readerCount++;
    }

    synchronized public void releaseReadLock() {
        readerCount--;
        if (readerCount == 0)
            notify();
    }

    synchronized public void acquireWriteLock() {
        while (readerCount > 0 || isWriting == true) {
            try {
                wait();
            } catch (InterruptedException e) {}
        }
        isWriting = true;
    }

    synchronized public void releaseWriteLock() {
        isWriting = true;
        notifyAll();
    }

    ...

    sharedDB.acquireReadLock();
    sharedDB.read();
    sharedDB.releaseReadLock();

    sharedDB.acquireWriteLock();
    sharedDB.write();
    sharedDB.releaseWriteLock();
}

The Dining-Philosophers Problem

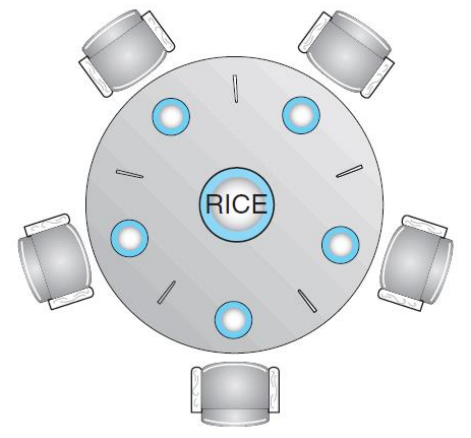

• Consider five philosophers who spend their lives thinking and eating.

  • sharing five single chopsticks.

• Sometimes, a philosopher gets hungry and tries to pick up two chopsticks that are closest to her.

• When a hungry philosopher has both her chopsticks at the same time, she eats without releasing the chopsticks.

• Need to allocate several resources among several processes in a deadlock-free and starvation-free manner.

Semaphore Solution

• One simple solution is to represent each chopstick with a semaphore.
  • A philosopher acquires a chopstick by executing a 𝑤𝑎𝑖𝑡() operation.
  • She releases her chopsticks by executing a 𝑠𝑖𝑔𝑛𝑎𝑙() operation.

semaphore chopstick[5];

while (true) {
    wait(chopstick[i]);
    wait(chopstick[(i + 1) % 5]);
    ...
    /* eat for a while */
    ...
    signal(chopstick[i]);
    signal(chopstick[(i + 1) % 5]);
    ...
    /* think for a while */
    ...
}

• The problem of deadlock and starvation

  • Simple semaphore solution guarantees mutual exclusion.
  • However, how about deadlock or starvation?
    • Suppose that all five philosophers become hungry at the same time and each grabs her left chopstick, trying to grab her right chopstick.
    • Here comes a deadlock situation.

• Possible remedies to the deadlock problem

  • Allow at most four philosophers to be sitting simultaneously at the table.
  • Allow a philosopher to pick up her chopsticks only if both chopsticks are available.
  • Use an asymmetric solution
    • An odd-numbered philosopher picks up first her left chopstick and then her right chopstick, whereas an even-numbered philosopher picks up her right chopstick and the her left chopstick.
  • Note that a deadlock-free solution does not necessarily eliminate the possibility of starvation.

Monitor Solution

• Let a philosopher to pick up her chopsticks only if both of them are available.

• We need to distinguish among three states of the philosophers: thinking, hungry, and eating.

• A philosopher can set her state to be eating, only if her two neighbors are not in the state of eating.

• We also need a condition variable which allows a philosopher to delay herself when she is hungry but is unable to obtain the chopsticks she needs.

• Solution to the Dining-Philosophers Problem

  • The distribution of the chopsticks is controlled by the monitor, DiningPhilosopher.
  • Each philosopher must to invoke the operation 𝑝𝑖𝑐𝑘𝑢𝑝(), before starting to eat, suspending the philosopher process.
  • After the successful completion of pickup(), the philosopher may eat, and invokes the operation 𝑝𝑢𝑡𝑑𝑜𝑤𝑛().
  • Note that mutual exclusion is guaranteed and no deadlocks will occur, however, starvation is still possible.

/*
* A monitor solution to the dining-philosopher problem
*/

monitor DiningPhilosophers
{
    enum {THINKING, HUNGRY, EATING} state[5];
    condition self[5];

    void pickup(int i) {
        state[i] = HUNGRY;
        test(i);
        if(state[i] != EATING)
            self.[i].wait();
    }

    void putdown(int i) {
        state[i] = THINKING;
        test((i + 4) % 5);
        test((i + 1) % 5);
    }

    void test(int i) {
        if((state[(i + 4) % 5] != EATING) && state[i] == HUNGRY && (state[(i + 1) != EATING])) {
            state[i] = EATING;
            self[i].signal();
        }
    }

    initialization_code() {
        for (int i = 0; i < 5; ++i)
            state[i] = THINKING;
    }
}

Pthread solution to the Dining-Philosophers Problem

#include <stdio.h>
#include <stdlib.h>
#include <unistd.h>
#include <pthread.h>

#define true 1
#define NUM_PHILS 5

enum {THINKING, HUNGRY, EATING} state[NUM_PHILS];

pthread_mutex_t mutex_lock;
pthread_cond_t cond_vars[NUM_PHILS];

void init() {
    int i;
    for (i = 0; i < NUM_PHILS; i++) {
        state[i] = THINKING;
        pthread_cond_init(&cond_vars[i], NULL);
    }
    pthread_mutex_init(&mutex_lock, NULL);
    srand(time(0));
}

int leftOf(int i) {
    return (i + NUM_PHILS - 1) % NUM_PHILS;
}

int rightOf(int i) {
    return (i + 1) % NUM_PHILS;
}

void think(int id) {
    printf("%d: Now, I'm thiking...\n", id);
    usleep((1 + rand() % 50) * 10000);
}

void eat(int id) {
    printf("%d: Now, I'm eating...\n", id);
    usleep((1 + rand() % 50) * 10000);
}

void *philosopher(void *param) {
    int id = *((int *)param);
    while (true) {
        think(id);
        pickup(id);
        eat(id);
        putdown(id);
    }
}

void test(int i) {
    // If I'm hungry and my neighbors are not eating,
    // then let me eat.
    if (state[i] == HUNGRY && state[leftOf(i)] != EATING && state[rightOf(i)] != EATING) {
        state[i] = EATING;
        pthread_cond_signal(&cond_vars[i]);
    }
}

void pickup(int i) {
    pthread_mutex_lock(&mutex_lock);

    state[i] = HUNGRY;
    test(i);
    while (state[i] != EATING) {
        pthread_cond_wait(&cond_vars[i], &mutex_lock);
    }

    pthread_mutex_unlock(&mutex_lock);
}

void putdown(int i) {
    pthread_mutex_lock(&mutex_lock);

    state[i] = THINKING;
    test(leftOf(i));
    test(rightOf(i));

    pthread_mutex_unlock(&mutex_lock);
}

int main() {
    int i;
    pthread_t tid;
    init();
    for (i = 0; i < NUM_PHILS; i++)
        pthread_create(&tid, NULL, philosopher, (void *)&i);
    for (i = 0; i < NUM_PHILS; i++)
        pthread_join(tid, NULL);
    return 0;
}

Java solution to the Dining-Philosophers Problem

import java.util.concurrent.locks.Condition;
import java.util.concurrent.locks.Lock;
import java.util.concurrent.locks.ReentrantLock;

enum State {
THINKING, HUNGRY, EATING
}

public class DiningPhilosophers {

    public static void main(String[] args) throws Exception {
        int numOfPhils = 5;
        Philosopher[] philosophers = new Philosopher[numOfPhils];
        DiningPhilosopherMonitor monitor = new DiningPhilosopherMonitor(numOfPhils);
        for (int i = 0; i < philosophers.length; i++)
            new Thread(new Philosopher(i, monitor)).start();
    }
}

class Philosopher implements Runnable {

    private int id;
    private DiningPhilosopherMonitor monitor;

    public Philosopher(int id, DiningPhilosopherMonitor monitor) {
        this.id = id;
        this.monitor = monitor;
    }

    @Override
    public void run() {
        while (true) {
            think();
            monitor.pickup(id);
            eat();
            monitor.putdown(id);
        }
    }

    private void think() {
        try {
            System.out.println(id + ": Now I'm thinking.");
            Thread.sleep((long)(Math.random()*500));
        } catch (InterruptedException e) { }
    }

    private void eat() {
        try {
            System.out.println(id + ": Now I'm eating.");
            Thread.sleep((long)(Math.random()*50));
        } catch (InterruptedException e) { }
    }
}

class DiningPhilosopherMonitor {

    private int numOfPhils;
    private State[] state;
    private Condition[] self;
    private Lock lock;

    public DiningPhilosopherMonitor(int num) {
        numOfPhils = num;
        state = new State[num];
        self = new Condition[num];
        lock = new ReentrantLock();
        for (int i = 0; i < num; i++) {
            state[i] = State.THINKING;
            self[i] = lock.newCondition();
        }
    }

    private int leftOf(int i) {
        return (i + numOfPhils - 1) % numOfPhils;
    }

    private int rightOf(int i) {
        return (i + 1) % numOfPhils;
    }

    private void test(int i) {
        if (state[i] == State.HUNGRY && state[leftOf(i)] != State.EATING && state[rightOf(i)] != State.EATING) {
            state[i] = State.EATING;
            self[i].signal();
        }
    }

    public void pickup(int id) {
        lock.lock();
        try {
            state[id] = State.HUNGRY;
            test(id);
            if (state[id] != State.EATING)
                self[id].await();
        }
        catch (InterruptedException e) {
        }
        finally {
            lock.unlock();
        }
    }

    public void putdown(int id) {
        lock.lock();
        try {
            state[id] = State.THINKING;
            test(leftOf(id)); // left neighbor
            test(rightOf(id)); // right neighbor
        }
        finally {
            lock.unlock();
        }
    }
}

Thread-Safe Concurrent Applications

• Concurrent applications have good performance on multicore systems, using techniques such as mutex locks, semaphores, and monitors.
• However, they present an increased risk of race conditions and liveness hazards such as deadlock.
• There are alternative approaches for the design of thread-safe concurrent applications.
  1. Transactional Memory
  2. OpenMP
  3. Functional Programming Language
